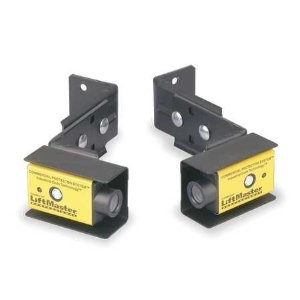

LIFTMASTER CPS-U Commercial Photo Eye System

Features
Required for Timer-to-Close wiring types on Logic 4.0 Operators (for Liftmaster operators only)
Direct connect to all Logic 3.0, Medium-Duty Logic, ATS2113X, and LGO5011 commercial operators
Continuous self-monitoring system with added benefit of a timer-to-close feature and that satisfies regulatory requirements and permits the use of features and wiring types such as all timer-to-close modes
Industrial code technology
Durable steel brackets - floor or track mounting
Bright yellow safety color
Range up to 30 ft - indoor use only
Additional CPS units may be added for increased safety on Logic 4.0 operators using the CPS3 or CPS3-N4 units
Commercial Door Operator Safety Photo Eye System, Sensing Range (Ft.) 30, NEMA Rating 1, Standards UL325, Volts Range Max. AC 24, For Use With G2530507, 6UR99, 2TRN1, 2TRN2, 2TRN3, 2TRN4, 2TRN5, 2TRN6, 4UKX6, 4UKX7

Includes: Photo Eyes and Mounting Brackets, 1 Pair
