LiftMaster 893MAX features Billion code, Security+ and Security+ 2.0 rolling code technology. Fully compatible with LiftMaster, Chamberlain and Sears Craftsman models made from 1993 - current that have a green, red/orange, purple or round yellow learn button and LiftMaster MyQ accessories.
How to Program Your LiftMaster Remote
Product Dimensions: 5.1 x 2.8 x 1.2 inches
Item weight: 2.4 ounces
How to Program the LiftMaster 893MAX 3-Button Garage Door Opener Remote Control in 6 Easy Steps
To
program the LiftMaster 893MAX remote, you will first need to locate
the Learn button on your garage door opener and the program
button on the remote control. You must also check to make sure that the
opener has a working light bulb since the bulb blinks to indicate that
the remote has been paired with the garage door opener.
1) Press the Program button found at the back of the remote. This button
is not elevated, making it necessary to insert a safety pin or
paper clip to place the remote into programming mode. Once the button has been pushed, the light at the front of the remote will light up indicating that the remote is now in programming mode.
2) Press and release the Learn button (will be a square green, red/orange
or purple button or a yellow circular button) on the garage door opener.
The Learn LED will light within 30 seconds. 3) Press and release one of the 3 the remote control buttons you want to use/program.
4) Wait for the remote control LED to light solid then slowly press and
release the remote control button again. Repeat until the garage door
opener light bulb blinks. DO NOT press the button after the light bulb
blinks.
5) To exit programming mode, press any remote control button except the button that was just programmed.
6) To test, press the programmed button on the
remote control. The garage door opener, gate, or MyQ light accessory
should now activate.
Click here to download a copy of the LiftMaster Programming Instructions
|
|
|
|
|
|
|
|
|
|
|
|
|
Features

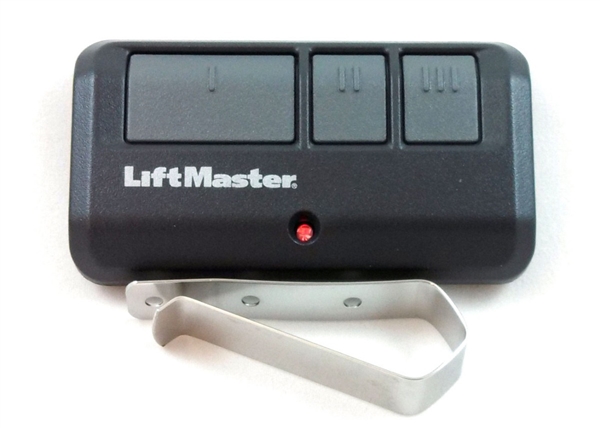

Technical The LiftMaster 893MAX 3-Button Remote Control
Security+ rolling code technology that uses a
new code at every click, making it
virtually impossible for anyone to steal or clone your remote control
signal when you open your door.
- Can control up to three garage door openers, gates or MyQ™ enabled light devices
- Signal reaches from greater distances
- Easy push-button programming
- Replaces the LiftMaster 81LM remote transmitter
Compatibility Compatible with all LiftMaster (and Sears
Craftsman and Chamberlain) garage door openers manufactured since
January 1993, as follows:
- Green Square Learn Button 390MHz Billion code garage door openers made from 1993 to 1995
- Red/Orange Square Learn Button 390MHz Security+ garage door openers made from 1996 to 2005
- Purple Square Learn Button 315MHz Security+ garage door openers made from 2006 to 2014
- Yellow Round Learn Button 310, 315 and 390MHz Security+2.0™ garage door openers made from 2011 to current
- All 315MHz LiftMaster and ELITE™ gate operators
- Any LiftMaster, Sears Craftsman or Chamberlain garage door opener with safety sensors.
Specifically compatible with the following LiftMaster brand garage door openers:
- Billion Code 390MHz - 1245/1255 and 1270/1280
- Security+ 390MHz - 1245R/1255R, 1265R, 220, 2245/2255, 2265, 2280, 2500, 2575, 2585 and 2595
- Security+ 315MHz - 1345/1355, 1356, 3220, 3255, 3240, 3265, 3270, 3280, 3800, 3500, 3850, 3575, 3585 and 3595
- Security+2.0 310, 315 and 390MHz - 8065, 8155, 8165, 8355, 8360, 8365-267, 8500, 8550W, 8557W and 8587W
Includes One (1) Liftmaster 893MAX MyQ 3-Button Remote
Control transmitter, 3 volt lithium battery, programming instructions,
visor clip and manufacturer's 90 day warranty.
Related Products Need
a key chain remote, wireless keypad or additional remote? If the
895MAX works with your garage door opener, then the following products
will also work with your opener or MyQ product. Consider adding one of
the following to your order:
|
|
|
|
|
|
