1KXS Commercial Exterior Key Switch with Center Return and Stop Button
1KXS Commercial Garage Door Key Switch with Stop Button
1KXS Commercial Garage Door Keyed Switch with Center Return and Red Stop Button

List Price:$335.10
Our Price:$245.13


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 1KXS
Qty:

Description Technical Specs Manuals and Helpful Tips

The 1KXS key control switch features a heavy-duty face plate with a die-cast aluminum enclosure and rubber gaskets for exterior use. These tamper proof switches are ULlisted and CSA certified. Designed for activating overhead doors, storefront grilles and shutters. This one includes a stop button.
Features
The 1KXS exterior tamper proof keyed control station with red rubber stop button is used to activate overhead doors, storefront grilles and shutters from a distance with a key. Simple to install by running wire to the door operator.

Technical
  • NEMA 3R, 4 and 12 rated
  • Surface mount
  • Tamper-proof
  • Two position (Open-Close) with stop button
  • Center return
  • Cylinder: Mortise type (5 pin) 1 1/8" diameter X 1" length

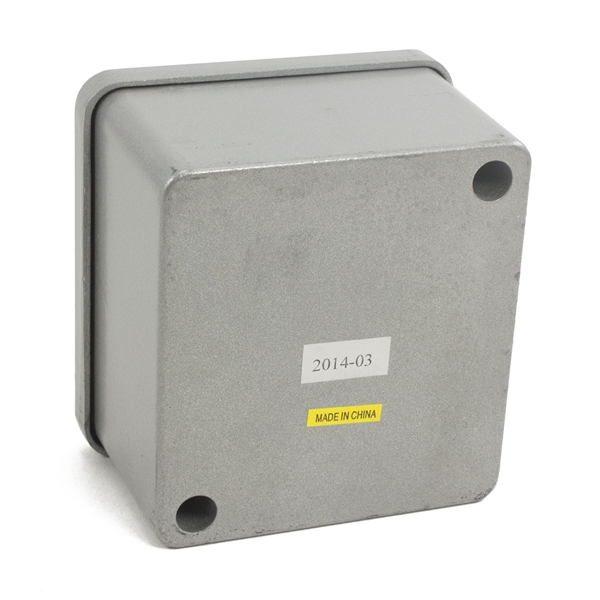

  • Aluminum die cast enclosure
  • Dimensions 4 3/8" H x 4 1/8" W x 2 5/8" D
  • Underwriters Laboratory (UL) listed
  • Canadian Standards Association (CSA) approved
  • Keyswitch: 15 amp capacity @ 125/250VAC
